DSO154Pro 2.4-inch Screen Digital Oscilloscope 18MHz Analog Bandwidth Support Signal Generator ,Professional Designed

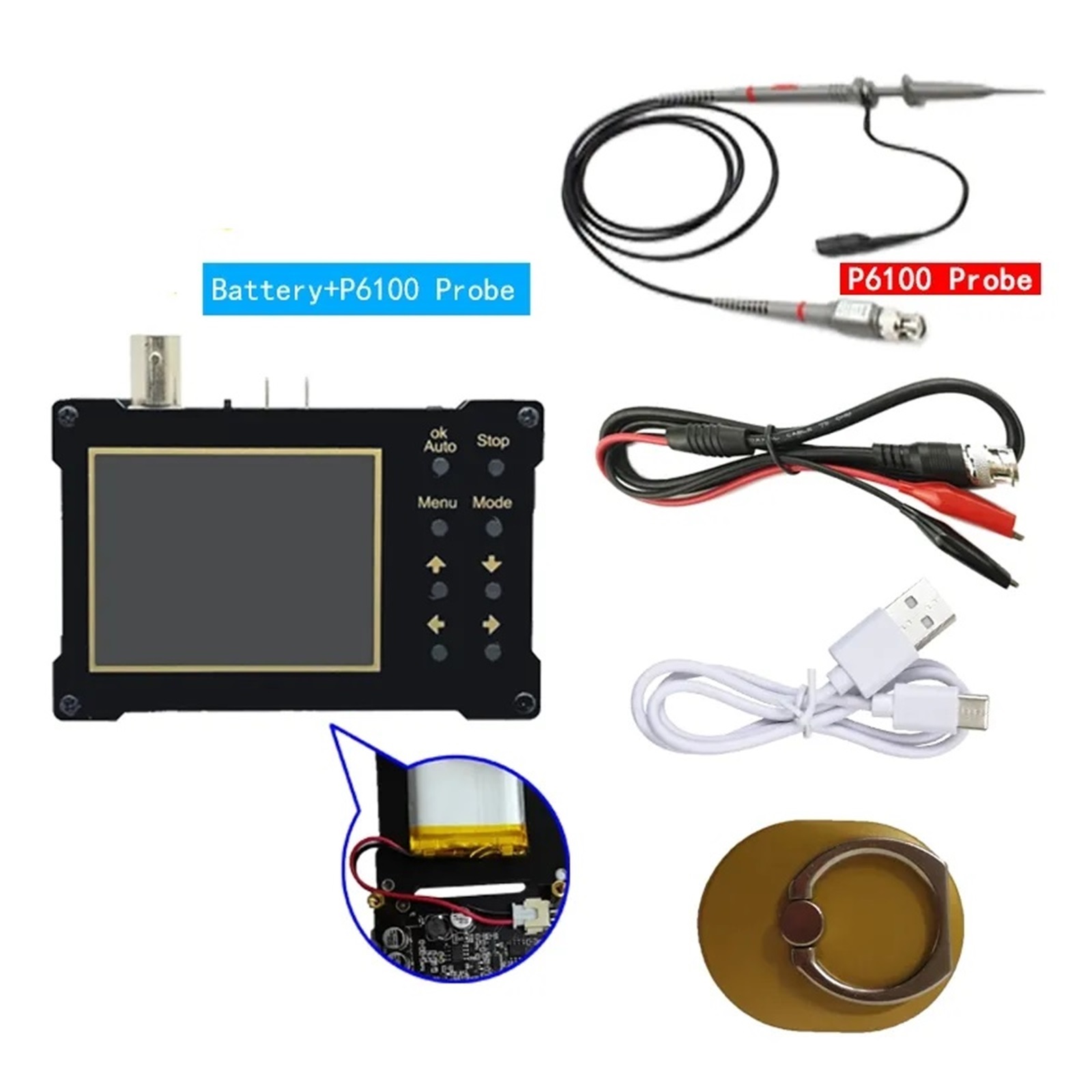

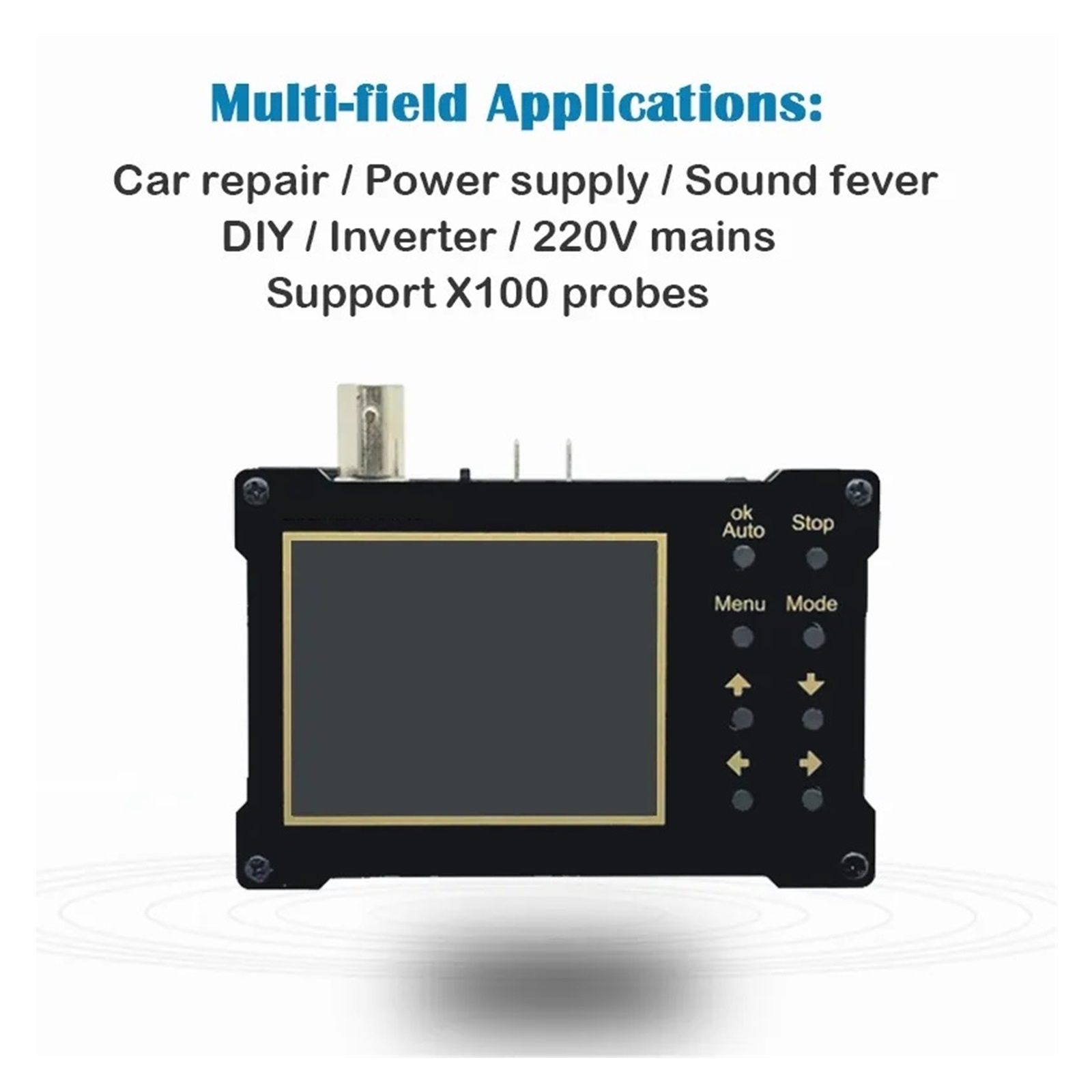

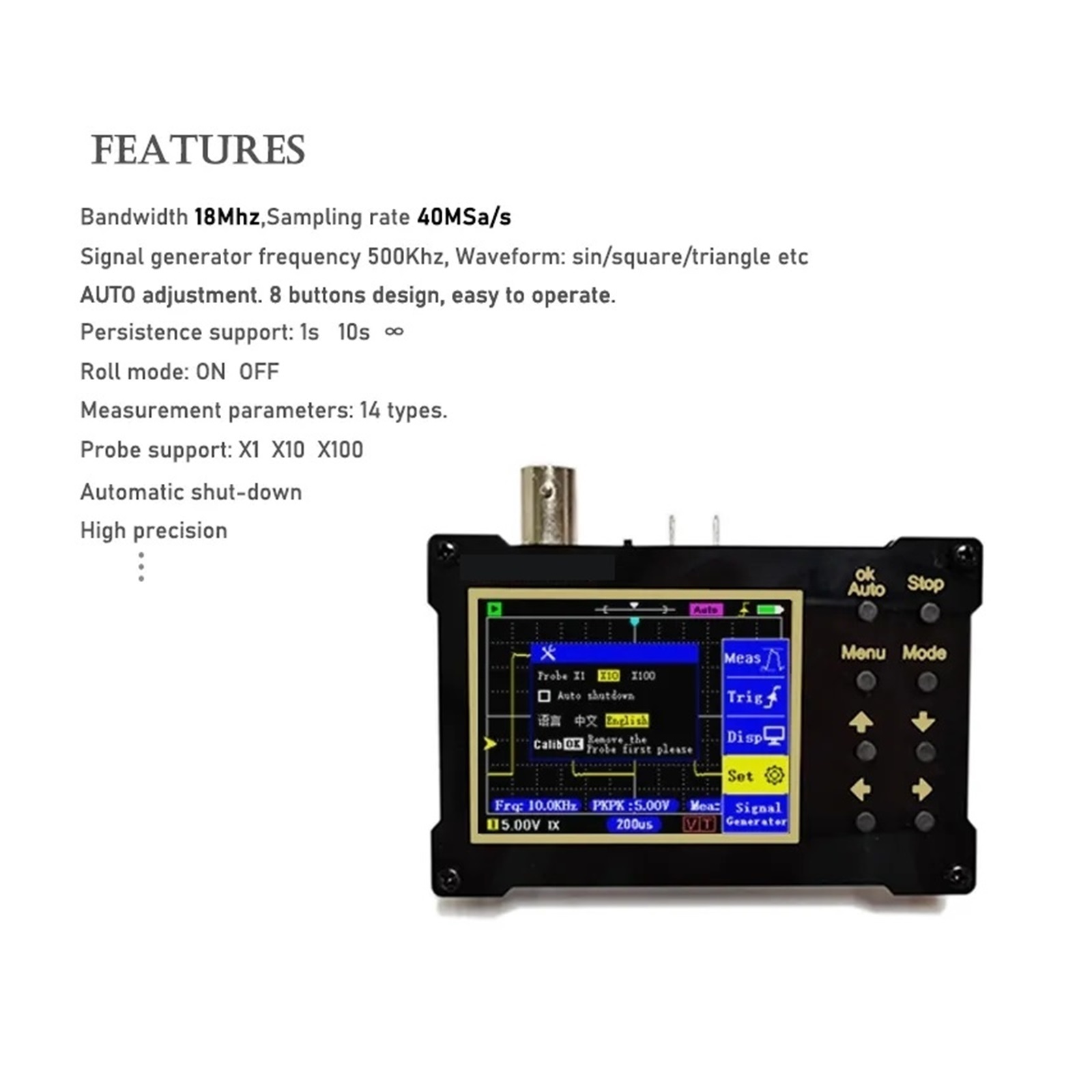

<p>Description</p><p>This is a kind of oscilloscope, ARM+FPGA+ADC architecture, with 18M bandwidth and 40M sampling rate, more stable and with higher precisions. </p><p>Widely application on mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc. You can have a try.</p><p></p><p>Features:</p><p>The duty cycle-adjustment-range is 1%-99%. It can be used to calibrate new probes, drive mosFETs, replace crystals, etc.</p><p>Trigger types: Rise/Fall, Trigger level: Manual/Auto</p><p>Detailed analysis: After stopping, you can move the waveform left and right to find the place youare interested in and expand (adjust the timebase) to observe the details and analyze the cause of the problem.</p><p>Power-supply: built-in rechargeable lithium battery, 3.7V, 1000mAh large caparity, full-charged can provides long working time.</p><p>Compact size: lightweight and portable, also can be used as a portable tool for on-site debugging.</p><p>Widely applications: suitable for mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc.</p><p></p><p>Specicifations:</p><p>Name: Oscilloscope</p><p>Model: DS0154Pro</p><p>Material: PCB</p><p>Hardware solution: ARM+FPGA+ADC</p><p>Battery: 1 * built-in rechargeable lithium battery, 3.7V, 1000mAh (included)</p><p>Screen: 2.4 inch TFT LCD</p><p>Channel: 1</p><p>Resolution: 320*240</p><p>Bandwidth: 18MHz</p><p>Sampling rate: 40M</p><p>&lt;20ns</p><p>Storage depth: 16Kbit</p><p>Impedance: 1M</p><p>Time base: 5ns-10s</p><p>Vertical sensitivity: 20mV/div-10V/div</p><p>Max voltage: ±40V(x1);±400V(x10)</p><p>Trigger mode: Auto/Normal/Single</p><p>Trigger type: rise/fall</p><p>Display mode: YT/Roll</p><p>Persistence: None/1s/</p><p>Coupling: AC/DC</p><p>Waveform measurement: 14 types</p><p>Precisions of measurement: ±2%</p><p>Generator: support</p><p>Frequency: ±0.01%</p><p>Language: CN/EN</p><p>Charge: micUSB 5V, 700mA</p><p>Item size:87 * 58 * 18mm / 3.42 * 2.28 * 0.71 in</p><p></p><p>Upgrade package List:</p><p>1 * Oscilloscope</p><p>1 * Probe</p><p>1 * Cable</p><p>1 * Bracket</p><p>1 * Guideline</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

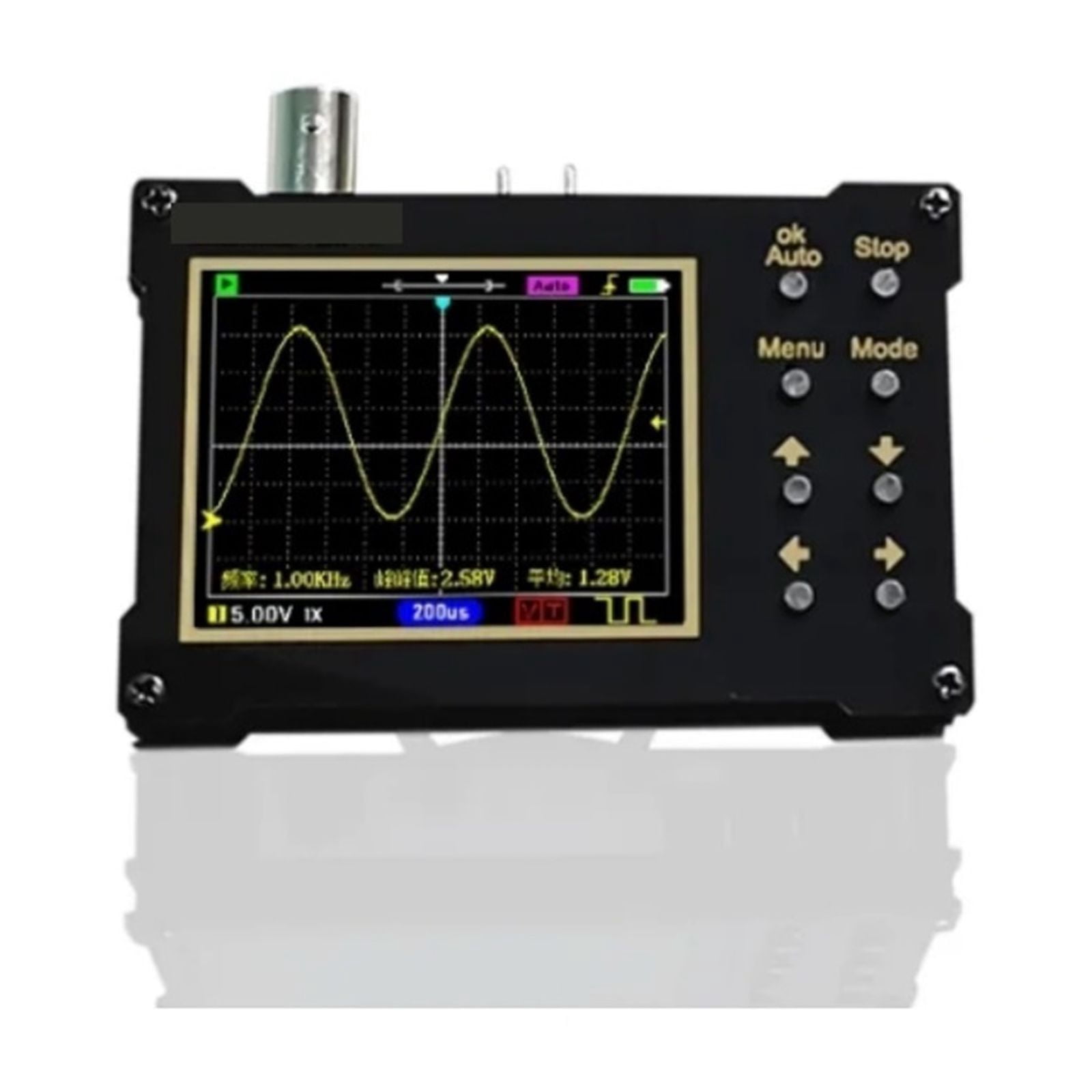

• Equipped with 320*240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly.
• ARM+FPGA+ADC architecture, with 18M bandwidth and 40M sampling rate, more stable and with higher precisions.
• High bandwidth: Up to 18M bandwidth can easily cope with measurement tests in various fields.

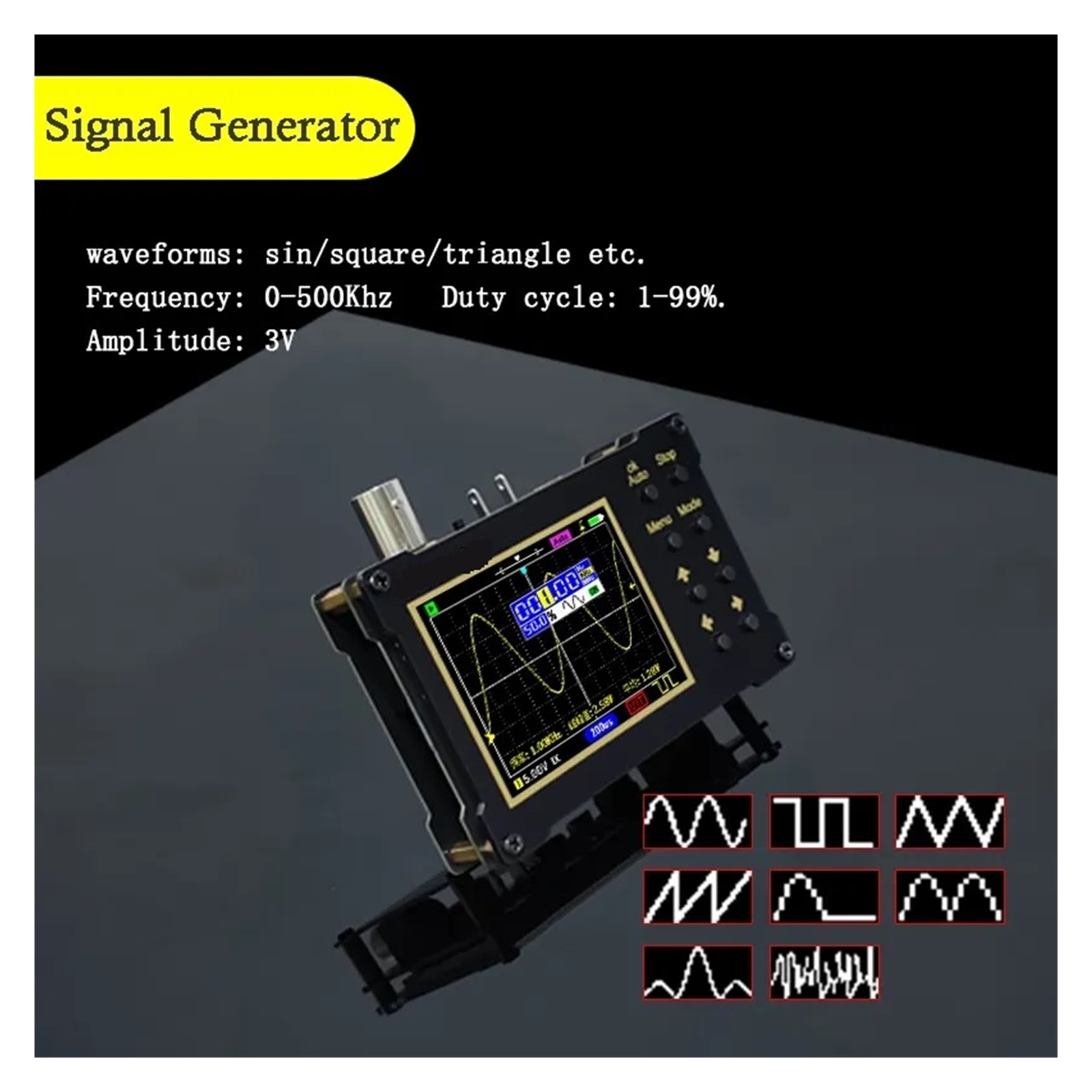

• Singnal generator: The upperside of the oscilloscope can output an adjustable waveform of 3V amplitude, the frequency-adjustment-range is 0-1MHz.
• Complete trigger: Trig mode: Auto/Normal/Single.
